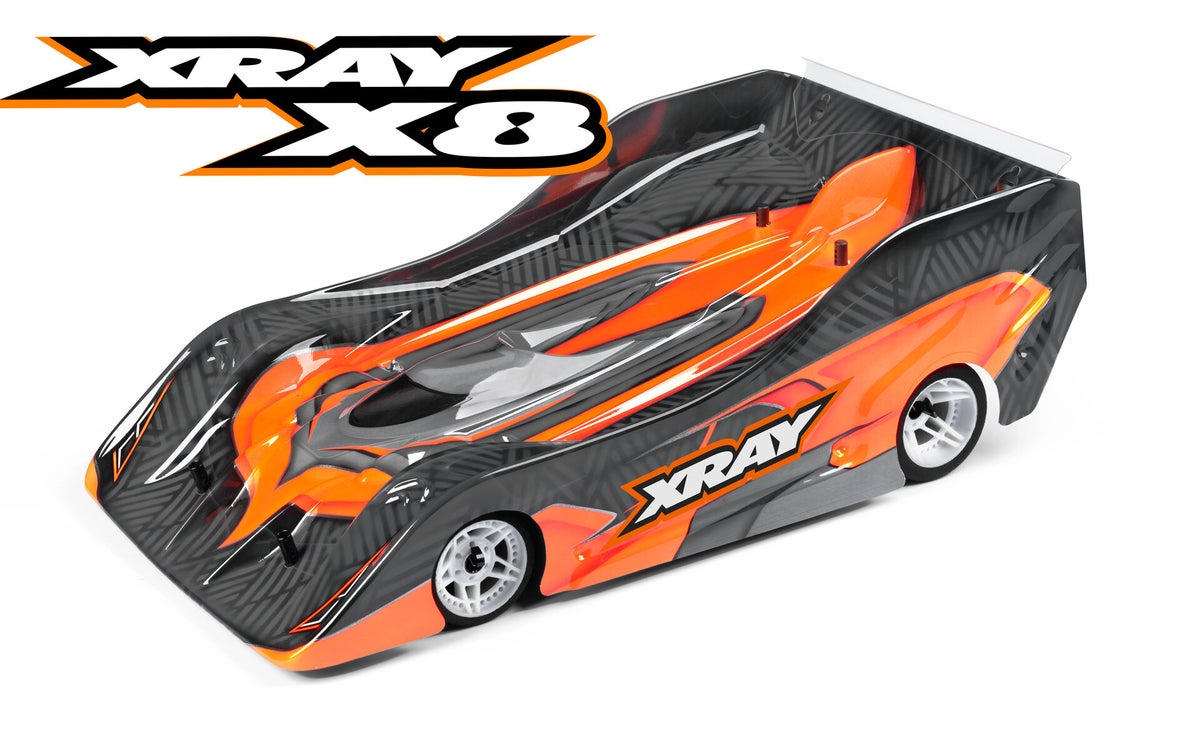

Xray X8 - 1/8 Luxury Electric On-Road Pan Car KIT 340500

XRAY X8.

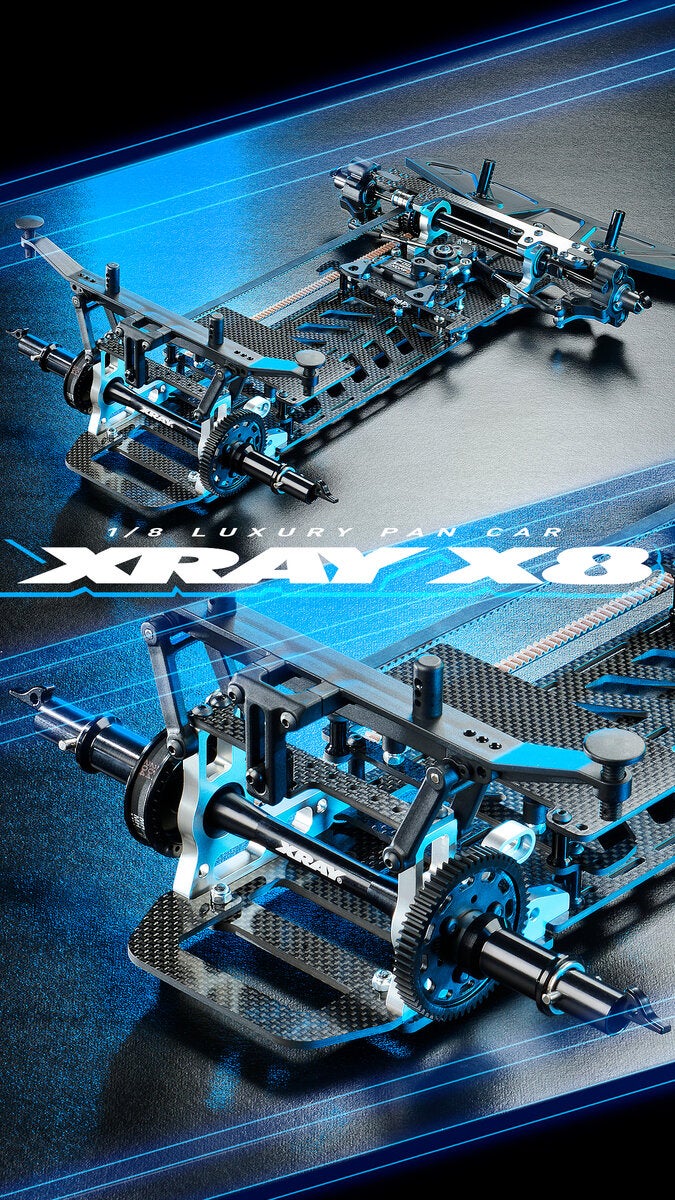

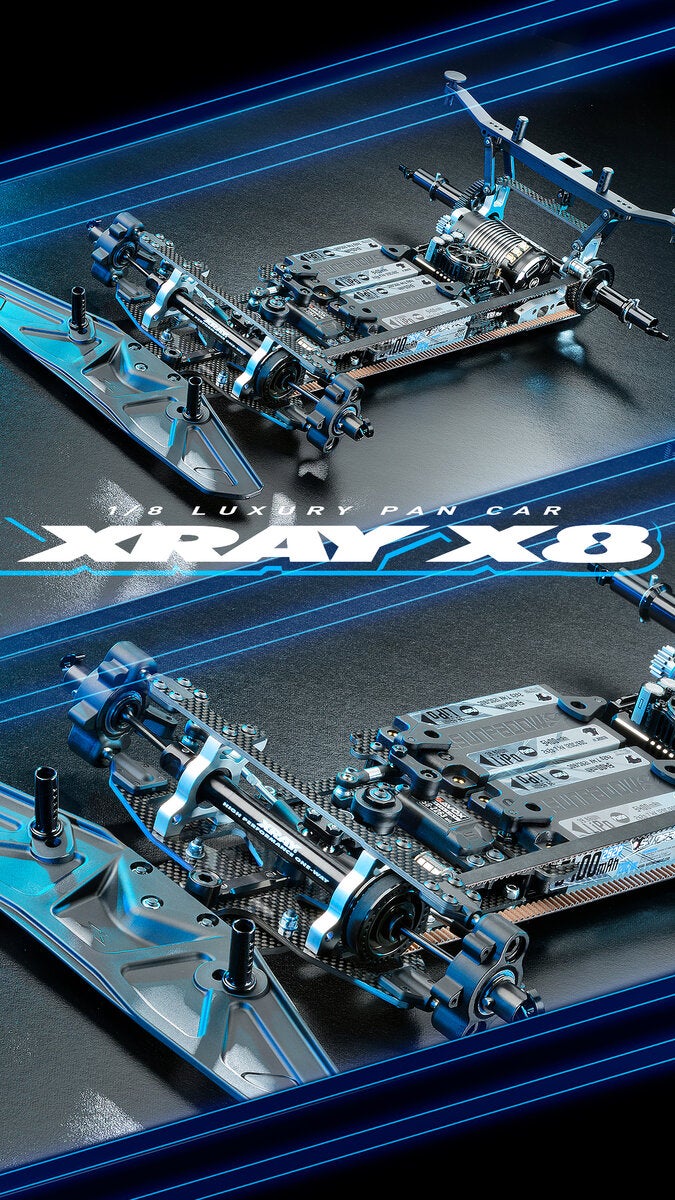

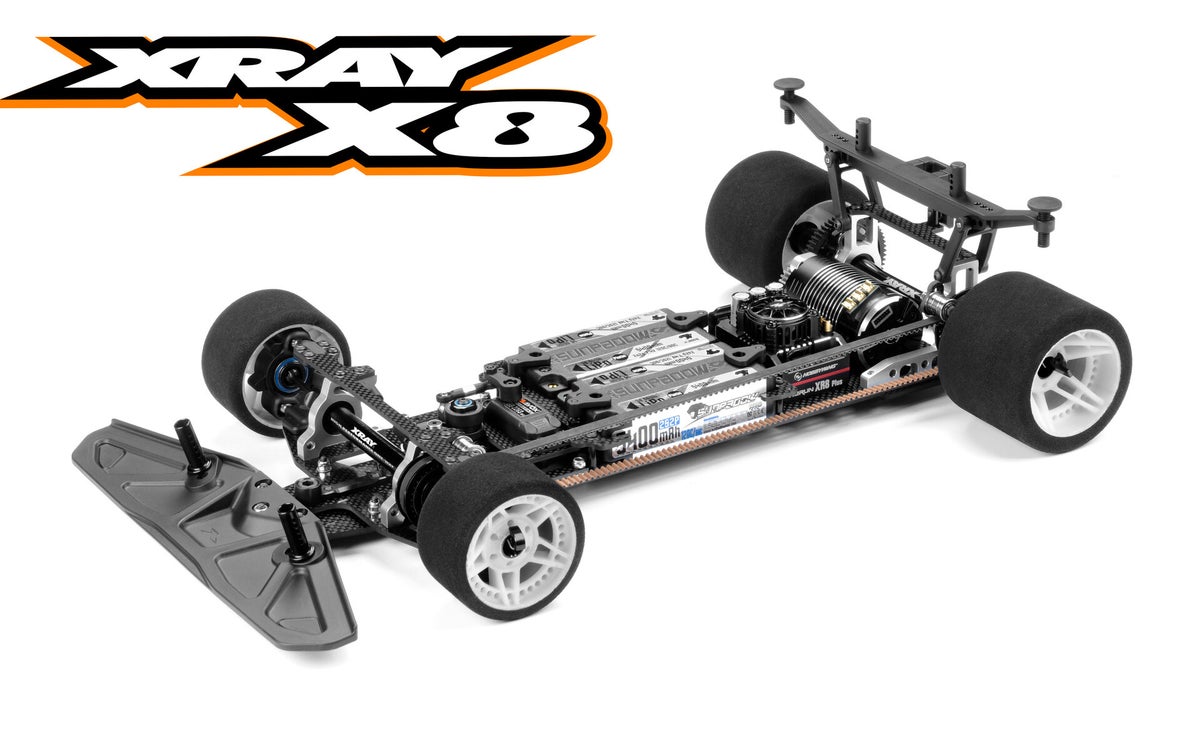

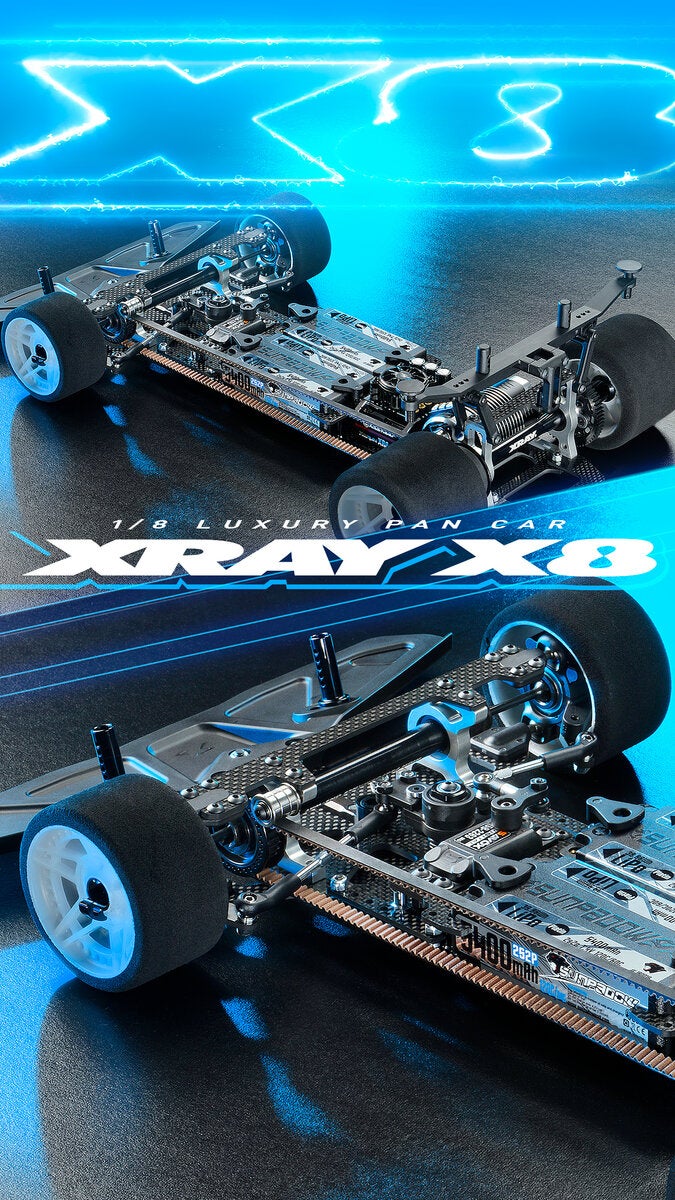

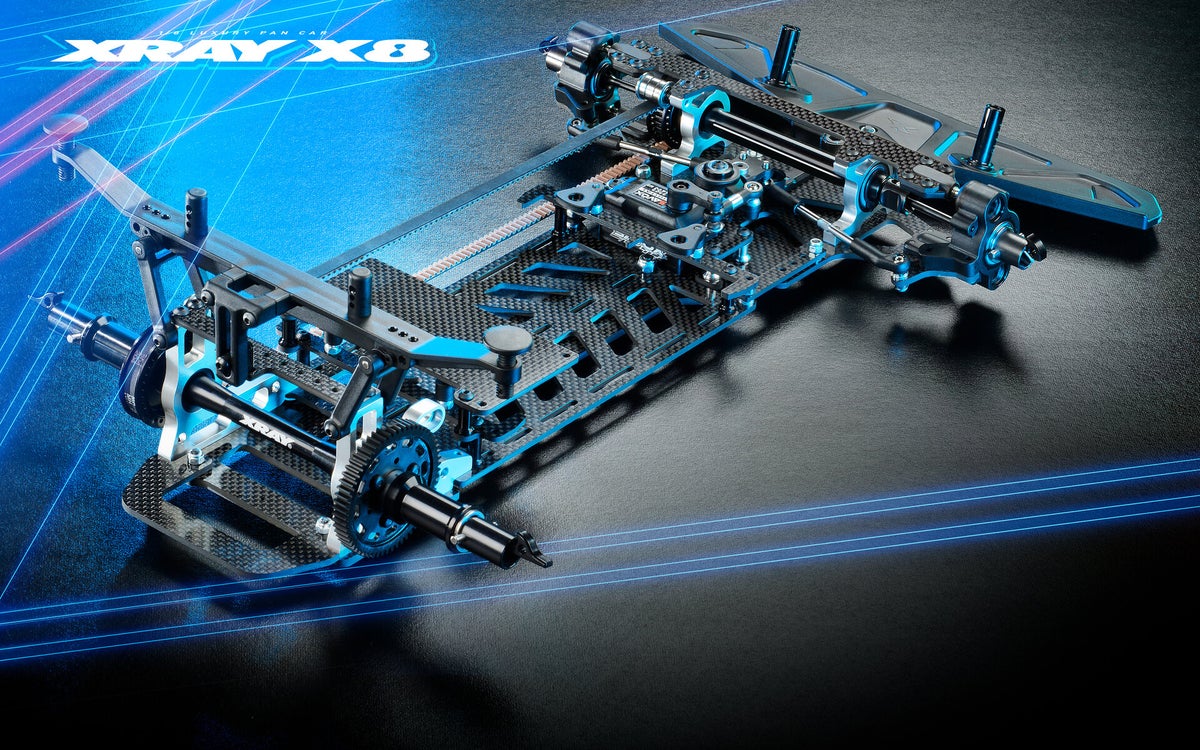

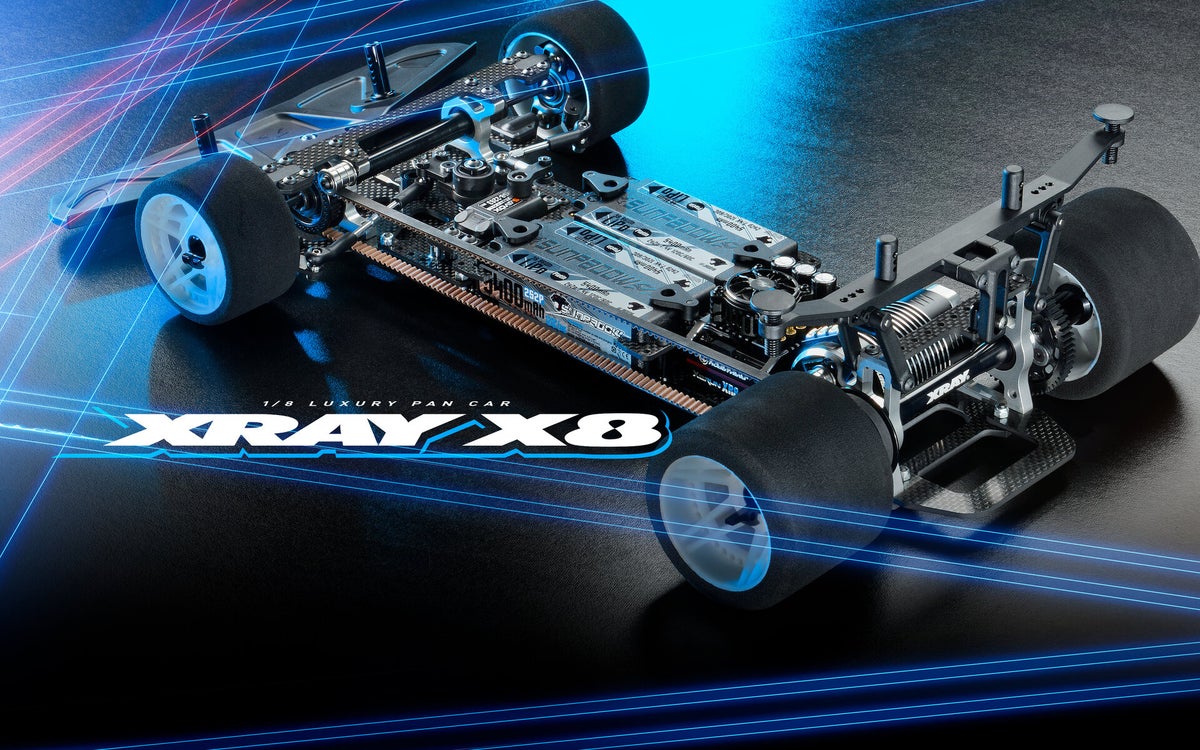

The X8 platform is an electric powered 4WD pan car with a solid rear axle and front one-way axle. It is a pure luxury racing chassis where every detail is carefully designed for the maximum performance possible on the track.

Main Features.

• Unique sandwich chassis design provides longitudinal reinforcement of the lower chassis plate with the top mounted battery tray
• Battery tray and lower chassis work together in a uniform flex system
• Chassis designed for optimal rigidity and flexibility
• Strategically placed chassis cutouts improve motor & battery cooling
• Front graphite suspension plate is mounted to chassis via pivot balls
• Front suspension allows for precise adjustments of the geometry via pivot balls
• Front caster is quickly & easily adjustable over a wide range
• Front suspension connects to battery tray for additional flex adjustments
• An O-ring flex system in the front suspension allows for tuning of the car’s steering characteristics
• Lightweight aluminium rear solid axle features a well-proven quick-release wheel system
• Hard coated front axle features German made front one-way bearing
• HUDY Spring Steel™ front CVD axles for a reliable and chatter-free driveline
• Well-proven composite front steering blocks from the RX8 platform
• Ackermann settings are quickly adjustable over a wide range using the different servo saver positions
• Fully adjustable servo saver both in terms of spring tension and Ackermann positions
• Graphite servo mount plate is independent from the main chassis for precise handling & control
• Drivetrain features drilled out & lightened Swiss 7075 T6 aluminium hard-coated self-cleaning & long-lasting pulleys
• Oversized pulley covers are designed to keep the belt in place at all times
• Multiple flanged bearing system for belt tensioning allows for a smooth & reliable drivetrain
• Superior pulleys & the belt tensioning system require less belt tension to allow for more chassis flex
• Floating battery holder system on rear aluminum bulkheads ensure precise mounting which doesn’t impact chassis flex, and quick battery installation & removal
• Compatible with both shorty- and standard size battery packs

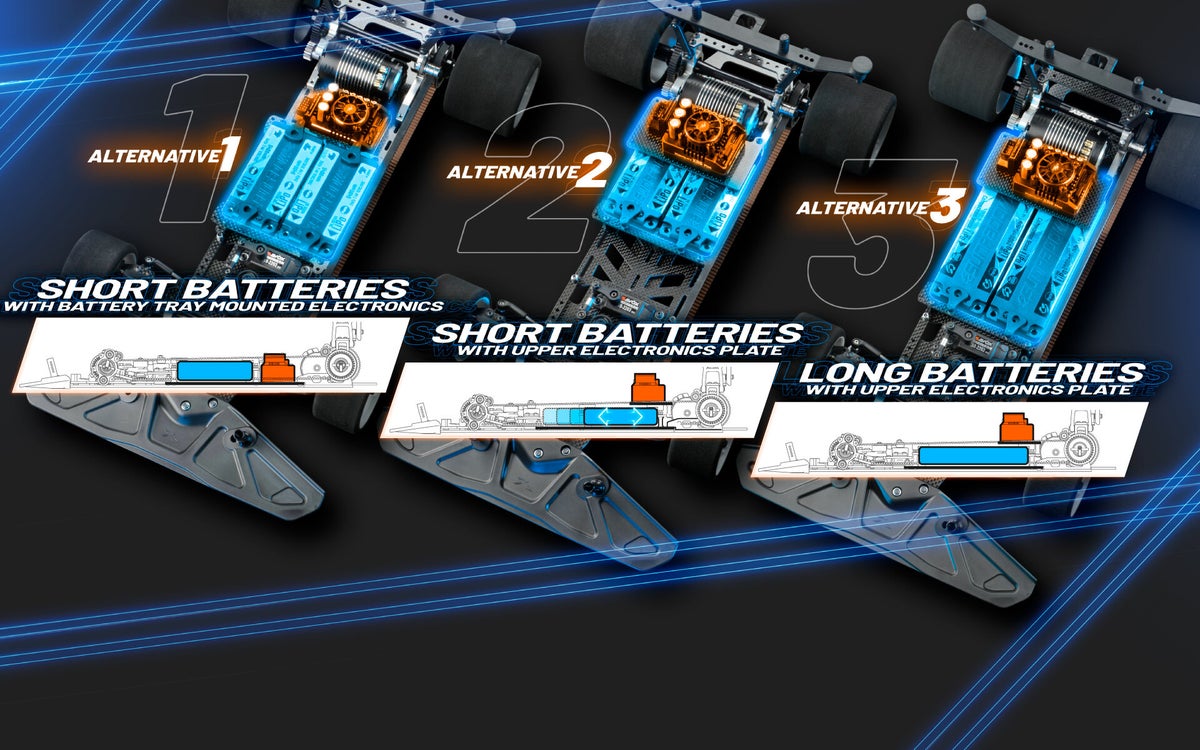

• Multiple electronic installation options for optimized weight balance depending on battery type
• Well-proven and super durable RX8 front composite bumper with eccentric posts for different body shell positions

Read full info here

Required Items:

• Transmitter & Receiver

• Electronic Speed Controller
• Steering Servo
• Electronic Motor
• Pinion Gear (294213~25)
• LiPo Battery Pack
• Battery Charger
• Bearing Oil
• Wheels and Tires
• 1/8 On-Road Body
• Paint
• Double-sided tape
